Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FDL
  • Model Number: FDL-G90B
  • Usage: Door,Home Security System SMS Alert
  • Alert FM frequency: 433mhz/868mhz/315mhz
  • Built in battery: 7.2V/600mAH
  • Language support:: English/French/Spanish/Russia
  • Working temperature: -10~ +70℃
  • GSM frequency: 900/1800/850/1900mhz

Packaging & Delivery

Packaging Details 1pcs/gift box,.20sets/carton
Delivery Time Shipped in 5 days after payment

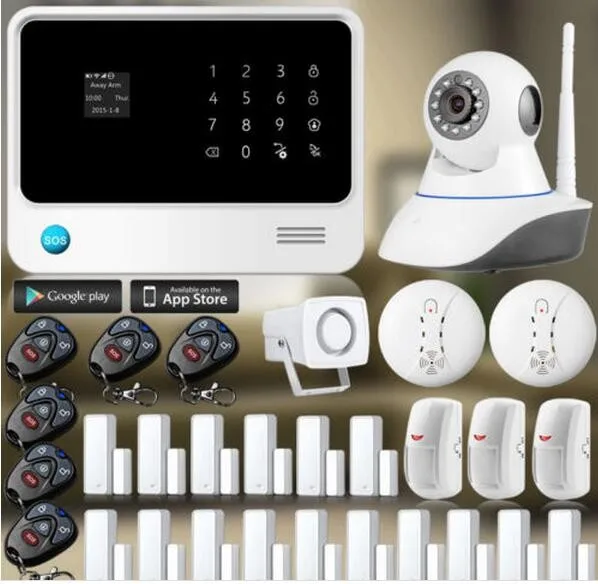

       GSM+WIFI alarm with control IP camera !

Support Leaving message, Independent and smart zones

Support APP+GPRS+RFID!  Wi-Fi network,internet push without charge





Specification



1.WIFI + GSM + GPRS word menu home alarm system

2.Android + IOS APP application easily control, Easy to give authorization. The first one Scanning QR code in the APP page will become the administrator

3.Notification push when there is no WIFI, the host will push via GPRS
4.Work with IP camera,The IP camera APP embeds in the host APP.
5.Workable with RFID wireless keypad
6.Zone names can be revised by users
7.Relay usages name can be revised by users
8.Independent zones. Every zone can be set be independent zone,
which can only disarm by administrator’s APP, The feature is fit for finance office.
9.Leaving message remotely in APP or host.
1)When leaving message in APP, such as: I will go home late, don’t wait for me. Next the message is automatically mapping to the host. Users will see the light to reminder.
2) When long press the “record” button for 3 sec in the host panel, will start a new memo, and automatically mapping to the APP end. Slightly press”record” will play the new message.
10.Information push promptly when AC power lost or recovered or detectors in low voltage
11.Smart zone function: self-checking windows/doors status and chime reminds if door open
12.Build-in wireless transmitter, can control 4 wireless relay outputs and wireless sound&strobe siren.
13.Support ”ding dong” doorbell function
14.30 wireless zones+4 wired defense zones + 4 wired relay output
15.Capacitive touch keypad, white back light
16.wireless encoding between host and detectors, innumerable detectors for each wireless zone
17.Can store 6 alarm call phone No.+3 alarm push phone No.
18.Support Three zone types: 24H line, 1st line, 2st line.
19.Arm/alarm Delay for each defense zone. Timed arm/disarm function
20.Built-in 800mA rechargeable battery
21.10-second voice message recording
22.Support Monitoring and two-way intercom function.
23.The host can be used as a hand-free phone.


Technical information

Power supply: AC=100 ~ 230V 50Hz/60Hz

Working voltage: DC12V 1A

Static current: < 35mA (when not in charging)

Alarm current: < 120mA

Backup Battery: 3.7V 1050mAh

Standby time: Around 36 hours

Charging time: 10 hours

GSM frequency: 850/900/1800/1900MHz

WiFi frequency:2.4G

GSM Transmission power: 2W

Receiving and emitting frequency: 433MHz/315MHz/868MHz for option



Standard Package:



1 x GSM Control Unit (GSM Sim Card is not included)

2 x Remote Controller (Battery is included)

1 x Wireless P.I.R Motion Sensor (Battery is included)

1 x Wireless Door/Window Sensor (Battery is included)

1 x Power Supply (According your country)

1 x User Manual (English language)
